STP Cat5e+3x2.5 Power Cable SWB LSZH Sheathed Fire Resistant Composite Cable

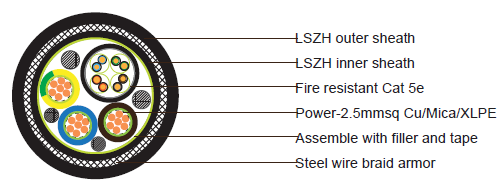

Construction:

STP Cat5e+3x2.5 Power Cable SWB LSZH Sheathed Fire Resistant Composite Cable

STP CAT5E 4x2x24AWG

Conductor

Solid copper conductor

Insulation

Polyethylene+ FR Silicone Rubber

Shield &Fire Barrier

Individual Al-foil shield , add mica tape outside

Sheath(optional)

FRLSZH sheath. Nominal outer diameter 10.5+/-1.5mm

Sheath Color

Black

3x2.5mm² Power Cable

Conductor

2.5mm2 Stranded tinned copper wire

Fire Barrier

Mica tape

Insulation

XLPE. Nominal outer diameter 5.0mm

Insultion Color

Brown, Blue, Green/Yellow

Element Assembly

Filler

PE or PP material

Fire Barrier

Fire barrier tape(optional)

Inner Sheath

Black FRLSZH, ID(inner sheath diameter ) min. 22.0mm

Armor

Galvanized steel wire braid, coverage 85%

Outer Sheath

FRLSZH, Nom. OD (overall diameter) min.26.0mm

Sheath Color& property

Black,UV resistance, hydrocarbon resistance and water tightness

Electrical and Physical Properties @20°C:

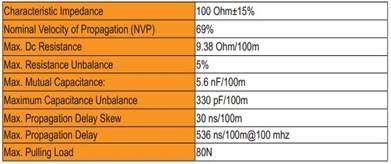

Cat5e





Power Cable 2.5mmsq

Electrical Resistance: 7.90hm/km

Insulation Resistance: 1000

M0hmxkm Voltage: 300/500V or 0.6/1KV

optional Operating Temperature: -30oC/+80oC

Fire Performance:

Low Smoke Capacity: IEC61034-1/2

Halogen Free: IEC60754-1/2

Flame Propagation:  IEC60332-3-24

Fire Resistant: IEC60331-21

Mud Resistant & other properties could be met upon request
